Single positive-edge-triggered D-type flip-flop, part of the 74AUP series, operates with a maximum frequency of 280MHz. This CMOS logic IC features a minimum supply voltage of 800mV and a maximum of 3.6V, with a propagation delay of 17.3ns. It supports a high level output current of -4mA and a low level output current of 4mA. Designed for surface mounting, this RoHS compliant component is packaged on tape and reel.
Frequency280MHz
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AUP1G79YZPR technical specifications.
General
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 280MHz |
| High Level Output Current | -4mA |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Logic Function | D-Type |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 4mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 17.3ns |
| RoHS Compliant | Yes |
| Series | 74AUP |
| Technology | CMOS |
| Turn-On Delay Time | 3ns |
| Weight | 5.6E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AUP1G79YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74AUP1G79YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

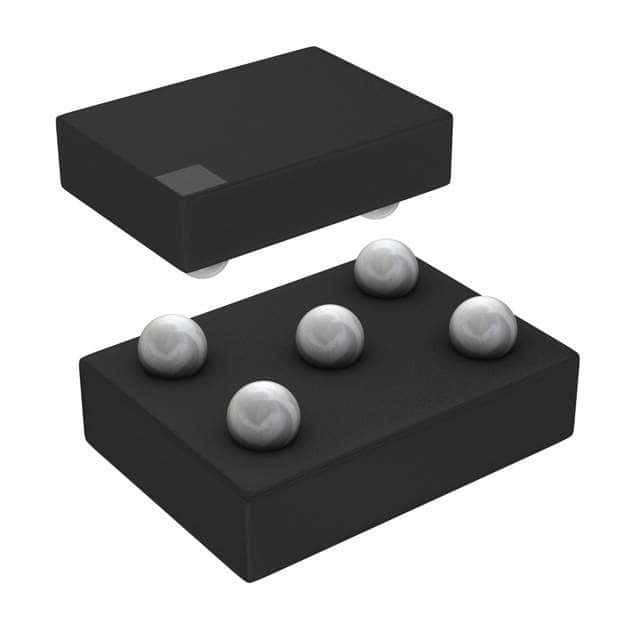

Product Images
