16-bit transparent D-type latch with 3-state outputs, featuring CMOS technology and non-inverting polarity. Operates with a supply voltage range of 1.4V to 3.6V, offering a propagation delay of 2.8ns and a turn-on delay time of 9.4ns. Supports output currents of 12mA (high and low levels) and is housed in a 56-BGA MICROSTAR JUNIOR package for surface mounting. This RoHS compliant component is designed for operation between -40°C and 85°C.
PackageBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AVC16373ZQLR technical specifications.
General
| Package/Case | BGA |
| High Level Output Current | -12mA |
| Lead Free | Lead Free |
| Logic Function | D-Type, Latch |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 16 |
| Number of Output Lines | 16 |
| Number of Outputs | 16 |
| Output Current | 12mA |
| Output Type | 3-STATE |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 2.8ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SN74AVC16373 |
| Technology | CMOS |
| Turn-On Delay Time | 9.4ns |
| Weight | 0.002056oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AVC16373ZQLR Datasheet
Download the complete datasheet for Texas Instruments SN74AVC16373ZQLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

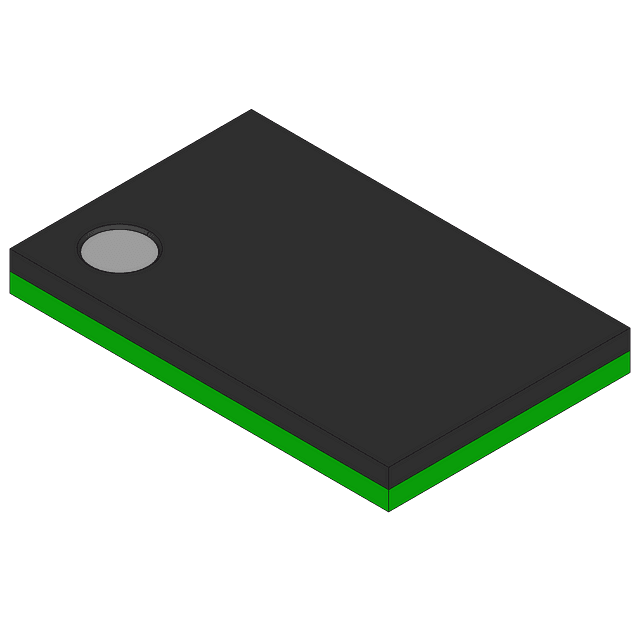

Product Images
