1-bit, 1-channel bidirectional voltage level translator for CMOS technology. Features 3-state outputs and a maximum data rate of 500Mbps. Operates with supply voltages from 1.2V to 3.6V, offering 12mA output current. This surface mount component, packaged in SC-70 tape and reel, provides a propagation delay of 2.8ns.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AVC1T45DCKT technical specifications.
General
Package/Case
SC
Data Rate
500Mbps
High Level Output Current
-12mA
Lead Free
Lead Free
Logic Function
Translator, Transceiver, Inverting
Low Level Output Current
12mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Elements
1
Number of Inputs
1
Number of Outputs
2
Output Current
12mA
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
2.8ns
Quiescent Current
20uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
5.6ns
Weight
8.8E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AVC1T45DCKT Datasheet
Download the complete datasheet for Texas Instruments SN74AVC1T45DCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

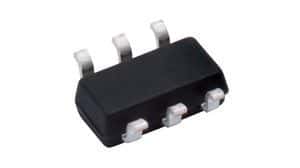

Product Images
