SN74AVC4T245DGVR
4-Bit Dual-Supply Bus Transceiver, 380Mbps, 1.2-3.6V, 3-State, TFSOP
4-Bit Dual-Supply Bus Transceiver, featuring configurable voltage-level shifting and 3-state outputs. This CMOS logic IC supports bidirectional data flow across 4 channels with a maximum data rate of 380Mbps. Operating from 1.2V to 3.6V supply voltage, it offers a propagation delay of 3.1ns and an output current of 50mA. Packaged in a 16-TVSOP (TFSOP) surface-mount format, this RoHS compliant component functions within an extended temperature range of -40°C to 85°C.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AVC4T245DGVR technical specifications.
General
| Package/Case | TFSOP |
| Channel Type | Bidirectional |
| Data Rate | 380Mbps |
| Height | 1.05mm |
| High Level Output Current | -12mA |
| Lead Free | Lead Free |
| Length | 3.7mm |
| Logic Function | Transceiver, Translator |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Inputs | 4 |
| Output Current | 50mA |
| Output Type | 3-STATE |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3.1ns |
| Quiescent Current | 80uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74AVC |
| Technology | CMOS |
| Turn-On Delay Time | 10.3ns |
| Weight | 0.001478oz |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AVC4T245DGVR Datasheet
Download the complete datasheet for Texas Instruments SN74AVC4T245DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

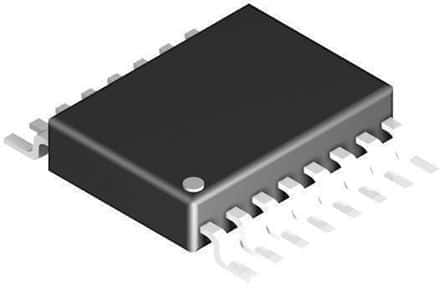

Product Images
