4-channel, bidirectional voltage level translator featuring CMOS technology. Supports a wide supply voltage range from 1.2V to 3.6V with a maximum data rate of 380Mbps at 100MHz. Offers 3-state outputs with 12mA output current and a propagation delay of 2.9ns. Packaged in a 16-pin TSSOP for surface mounting, this RoHS compliant component is ideal for signal translation applications.
Frequency100MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AVC4T245PW technical specifications.
General
Package/Case
TSSOP
Data Rate
380Mbps
Frequency
100MHz
High Level Output Current
-12mA
Lead Free
Lead Free
Logic Function
Translator, Transceiver
Low Level Output Current
12mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
4
Number of Channels
4
Number of Circuits
2
Number of Elements
2
Number of Inputs
4
Number of Outputs
4
Output Current
12mA
Output Type
3-STATE
Package Quantity
90
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
2.9ns
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AVC
Technology
CMOS
Thickness
1mm
Turn-On Delay Time
2.9ns
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AVC4T245PW Datasheet
Download the complete datasheet for Texas Instruments SN74AVC4T245PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

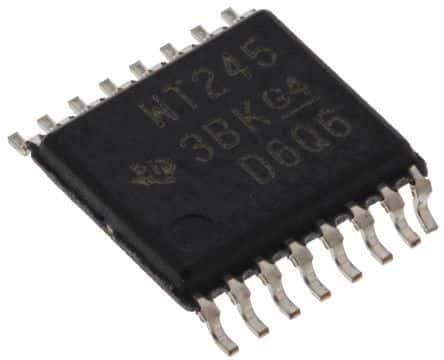

Product Images
