8-bit bidirectional voltage level translator, CMOS technology, supporting data rates up to 320Mbps. Features 8 bidirectional channels with 3-state output, operating from 1.2V to 3.6V supply voltage. Surface mountable in a VQFN package, this non-inverting logic transceiver offers a propagation delay of 8.7ns and a maximum operating temperature of 125°C. RoHS compliant and lead-free.
PackageVQFN
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AVC8T245RHLR technical specifications.
General
Package/Case
VQFN
Channel Type
Bidirectional
Data Rate
320Mbps
Direction
Bidirectional
Height
0.95mm
High Level Output Current
-12mA
Lead Free
Lead Free
Length
5.65mm
Logic Function
Transceiver, Translator
Low Level Output Current
12mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Output Type
3-STATE
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
8.7ns
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AVC
Technology
CMOS
Thickness
900um
Turn-On Delay Time
8.7ns
Weight
0.001767oz
Width
3.65mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AVC8T245RHLR Datasheet
Download the complete datasheet for Texas Instruments SN74AVC8T245RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

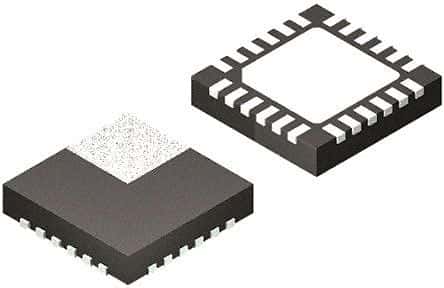

Product Images
