Texas Instruments
SN74AVCA406LZQSR
MMC, SD Card, and Memory Stick Voltage-Translation Transceiver 24-BGA MICROSTAR JUNIOR -40 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AVCA406LZQSR technical specifications.
General
| Lead Free | Lead Free |
| Logic Function | Translator, Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits | 7 |
| Number of Channels | 4 |
| Operating Supply Current | 15uA |
| Output Current | 16mA |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 2.3ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74AVCA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AVCA406LZQSR Datasheet
Download the complete datasheet for Texas Instruments SN74AVCA406LZQSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

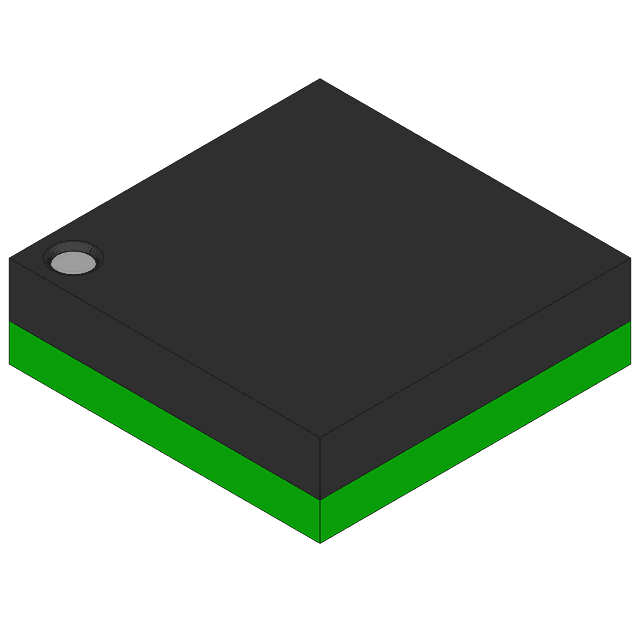

Product Images
