24-channel, 1:1 analog switch featuring 500MHz bandwidth and 0.15ns propagation delay. This CMOS device operates with a single supply voltage range of 2.3V to 3.6V, offering 2 independent circuits and 8 switches per circuit. Designed for surface mounting in a VFBGA package, it supports ±64mA high/low level output current and is RoHS compliant. Operating temperature range is -40°C to 85°C.
PackageVFBGA
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74CB3Q16211ZQLR technical specifications.
General
| Bandwidth | 500MHz |
| Package/Case | VFBGA |
| High Level Output Current | -64mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 24 |
| Number of Channels | 24 |
| Number of Elements | 2 |
| Number of Switches | 8 |
| Output Current | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.15ns |
| Quiescent Current | 3mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74CB |
| Supply Current | 1mA |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 8ns |
| Weight | 0.002056oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CB3Q16211ZQLR Datasheet
Download the complete datasheet for Texas Instruments SN74CB3Q16211ZQLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

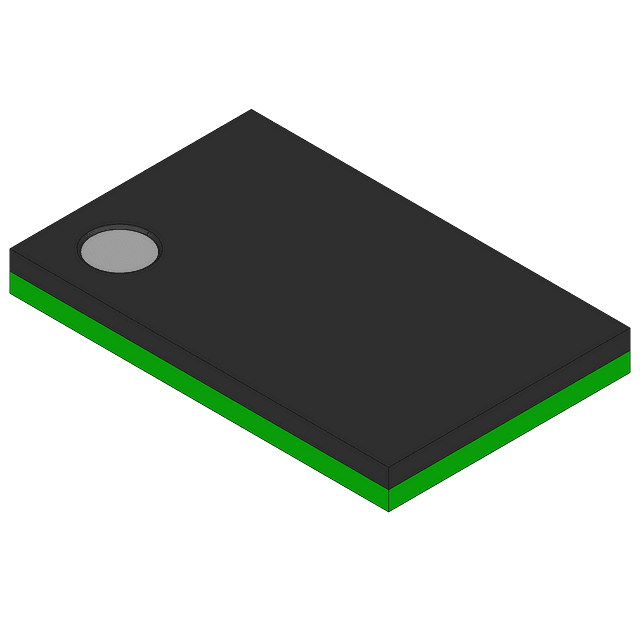

Product Images
