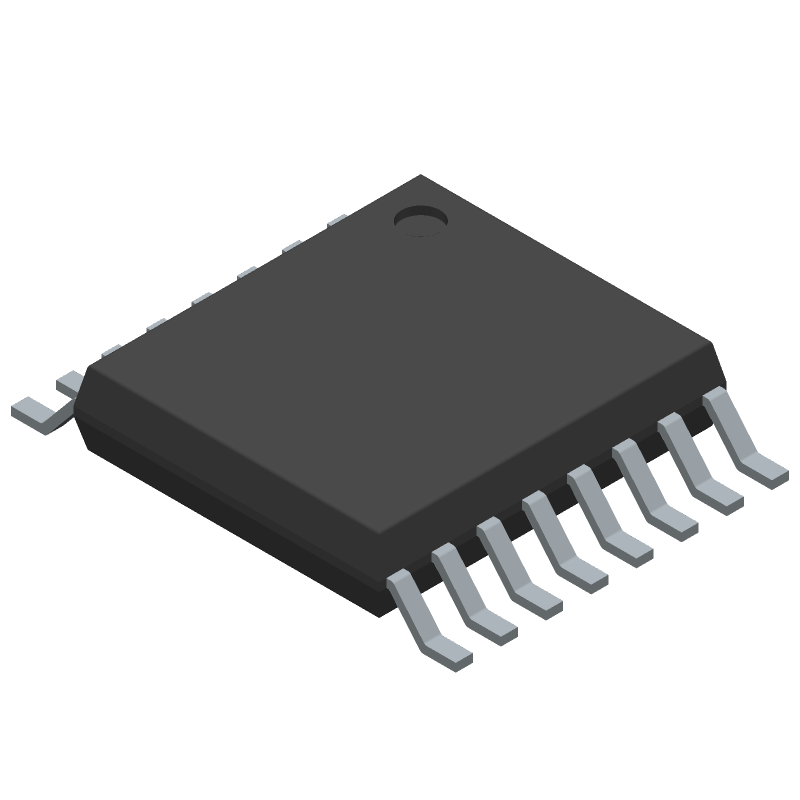

CMOS bus switch featuring 8-input, 1-output multiplexer/demultiplexer functionality. This single-element IC offers a 500MHz bandwidth and a fast 0.12ns propagation delay. Operating from a 2.3V to 3.6V single supply, it supports ±64mA output current and is housed in a 16-pin TSSOP package. The device is RoHS compliant and designed for tape and reel packaging.
PackageTSSOP
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74CB3Q3251PWR technical specifications.
General
| Bandwidth | 500MHz |
| Package/Case | TSSOP |
| High Level Output Current | -64mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Multiplexer, Demultiplexer |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| Operating Supply Current | 4mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 0.12ns |
| Quiescent Current | 4mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74CB |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 6.7ns |
| Weight | 0.002183oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CB3Q3251PWR Datasheet
Download the complete datasheet for Texas Instruments SN74CB3Q3251PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
