CMOS 8-input, 4-output multiplexer/demultiplexer bus switch. Features a 500MHz bandwidth and 0.2ns propagation delay. Operates with a single supply voltage ranging from 2.3V to 3.6V. This surface mount component is housed in a 16-pin TSSOP package and offers 64mA of output current. RoHS compliant with a -40°C to 85°C operating temperature range.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74CB3Q3257PW technical specifications.
General
| Bandwidth | 500MHz |
| Package/Case | TSSOP |
| High Level Output Current | -64mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Multiplexer, Demultiplexer |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 4 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Number of Switches | 1 |
| Operating Supply Current | 1.5mA |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.2ns |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74CB |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 6.5ns |
| Weight | 0.002183oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CB3Q3257PW Datasheet
Download the complete datasheet for Texas Instruments SN74CB3Q3257PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

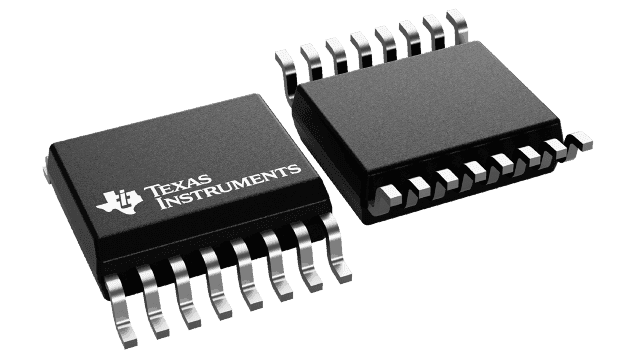

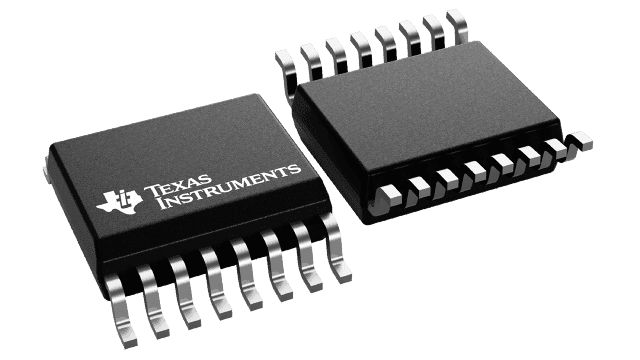

Product Images
