Texas Instruments
SN74CB3Q3305PWRG4
3.3-V, 1:1 (SPST), 2-channel FET bus switch (active high) 8-TSSOP -40 to 85
PackageTSSOP
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74CB3Q3305PWRG4 technical specifications.
General
| Bandwidth | 500MHz |
| Package/Case | TSSOP |
| High Level Output Current | 30mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Low Level Output Current | 15mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Switches | 2 |
| Output Current | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.15ns |
| RoHS Compliant | Yes |
| Series | 74CB |
| Supply Current | 250uA |
| Supply Type | Single |
| Weight | 0.001376oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CB3Q3305PWRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74CB3Q3305PWRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

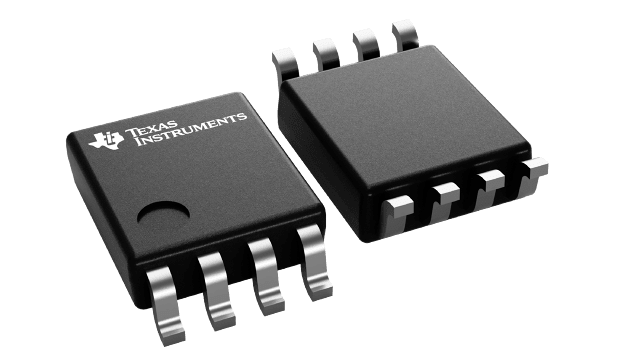

Product Images
