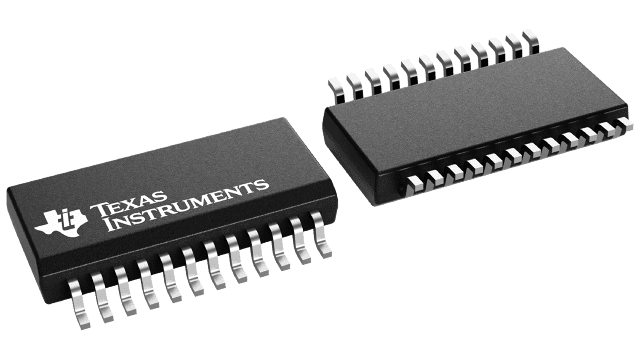

10-channel, 1:1 FET bus switch with 2 control inputs and level shifting. Features a 100MHz bandwidth and 0.15ns propagation delay. Operates from a 2.3V to 3.6V single supply, with a quiescent current of 40µA. Supports ±128mA high/low level output current and 64mA output current. Packaged in a 24-pin SOIC for surface mounting, with a temperature range of -40°C to 85°C.
PackageSOIC
Current40uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74CB3T3384DW technical specifications.
General
| Bandwidth | 100MHz |
| Package/Case | SOIC |
| High Level Output Current | -128mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 10 |
| Number of Elements | 2 |
| Number of Inputs | 10 |
| Number of Switches | 10 |
| Output Current | 64mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.15ns |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74CB |
| Supply Current | 40uA |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 10.5ns |
| Weight | 0.022025oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CB3T3384DW Datasheet
Download the complete datasheet for Texas Instruments SN74CB3T3384DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
