12-channel, 2:1 (SPDT) general-purpose FET bus switch. Features 0.25ns propagation delay, 5V supply voltage, and operates from -40°C to 85°C. Supports high-level output current of -128mA and low-level output current of 128mA. Surface mountable in a TFSOP package, this lead-free, RoHS-compliant component offers non-inverting logic.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74CBT16292DGVR technical specifications.
General
| Package/Case | TFSOP |
| High Level Output Current | -128mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Multiplexer, Demultiplexer |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Channels | 12 |
| Number of Switches | 12 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 0.25ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74CBT |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Weight | 0.005115oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CBT16292DGVR Datasheet
Download the complete datasheet for Texas Instruments SN74CBT16292DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

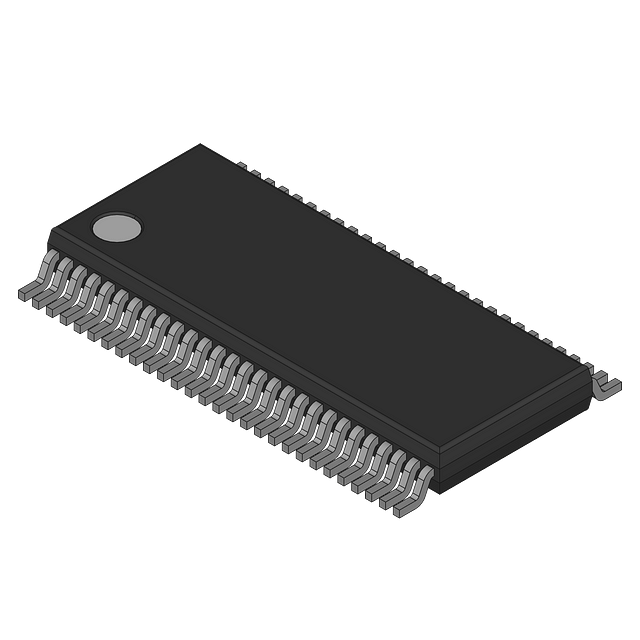

Product Images
