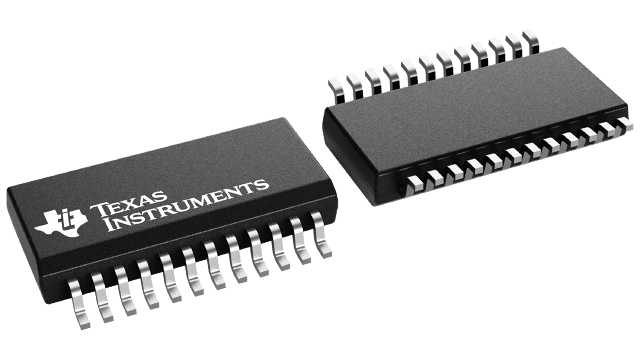

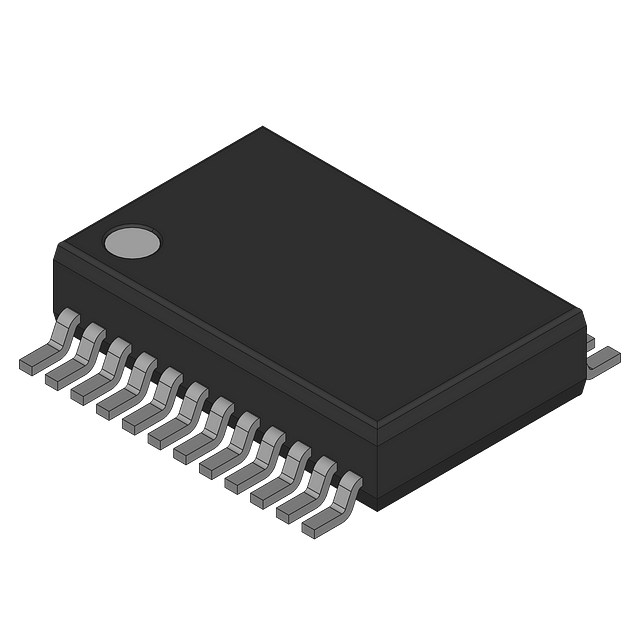

SN74CBTD3384DBQR

Datasheet

10-Ch FET Bus Switch, 5V, 20MHz, SPST, CMOS, SSOP

Texas Instruments

SN74CBTD3384DBQR

Name: SN74CBTD3384DBQR Texas Instruments
Brand: Texas Instruments
SKU: SN74CBTD3384DBQR

10-Ch FET Bus Switch, 5V, 20MHz, SPST, CMOS, SSOP

10-channel, 1:1 SPST FET bus switch for general-purpose applications. Features 2 independent circuits, 10 bits of address bus width, and level shifting capabilities. Operates with a 5V supply voltage (4.5V to 5.5V range) and offers a bandwidth of 20MHz. CMOS technology ensures low quiescent current of 1.5mA. Surface mountable in a 24-SSOP package, this RoHS compliant component supports non-inverting polarity and has a propagation delay of 7ns.

PackageSSOP

Current1.5mA

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

Texas Instruments SN74CBTD3384DBQR technical specifications.

General

Address Bus Width	10b
Bandwidth	20MHz
Package/Case	SSOP
Height	1.5mm
High Level Output Current	-128mA
Independent Circuits	2
Lead Free	Lead Free
Length	8.75mm
Low Level Output Current	128mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	4.5V
Mount	Surface Mount
Number of Bits	10
Number of Channels	10
Number of Elements	2
Number of Switches	10
Operating Supply Voltage	5V
Output Current	64mA
Package Quantity	1
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	7ns
Quiescent Current	1.5mA
Radiation Hardening	No
RoHS Compliant	Yes
Series	74CBTD
Supply Current	1.5mA
Supply Type	Single
Technology	CMOS
Throw Configuration	SPST
Turn-On Delay Time	0.25ns
Weight	0.004568oz
Width	4mm
