24-bit, 24-channel CMOS bus exchange switch with a 200MHz bandwidth. Features single supply operation from 2.3V to 3.6V, with a propagation delay of 0.25ns. This surface mount component offers 1 independent circuit and a DPDT throw configuration. Operating temperature range is -40°C to 85°C, with RoHS compliance and lead-free status.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74CBTLV16212VR technical specifications.
General
| Bandwidth | 200MHz |
| Package/Case | TFSOP |
| High Level Output Current | -128mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Supply Current | 250mA |
| Number of Bits | 24 |
| Number of Channels | 24 |
| Number of Elements | 1 |
| Number of Inputs | 24 |
| Number of Outputs | 24 |
| Output Current | 64mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 0.25ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74CBTLV |
| Supply Type | Single |
| Technology | CMOS |
| Throw Configuration | DPDT |
| Turn-On Delay Time | 11.1ns |
| Weight | 0.005115oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CBTLV16212VR Datasheet
Download the complete datasheet for Texas Instruments SN74CBTLV16212VR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

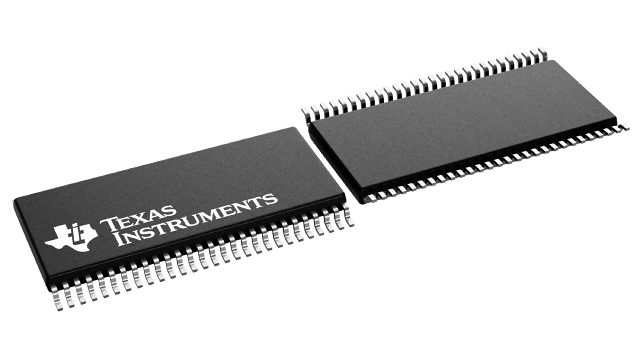

Product Images
