10-channel, 1:1 general-purpose FET bus switch with 2.3V to 3.6V supply voltage. Features 10-bit address bus width, 200MHz bandwidth, and 5.8ns propagation delay. CMOS technology supports 128mA high/low level output current and 64mA output current. Packaged in a 24-SOIC surface mount case, operating from -40°C to 85°C. RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74CBTLV3861DW technical specifications.
General
| Address Bus Width | 10b |
| Bandwidth | 200MHz |
| Package/Case | SOIC |
| Height | 2.35mm |
| High Level Output Current | -128mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Length | 15.6mm |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 10 |
| Number of Elements | 1 |
| Output Current | 64mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 5.8ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74CBTLV |
| Supply Type | Single |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 5.8ns |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CBTLV3861DW Datasheet
Download the complete datasheet for Texas Instruments SN74CBTLV3861DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

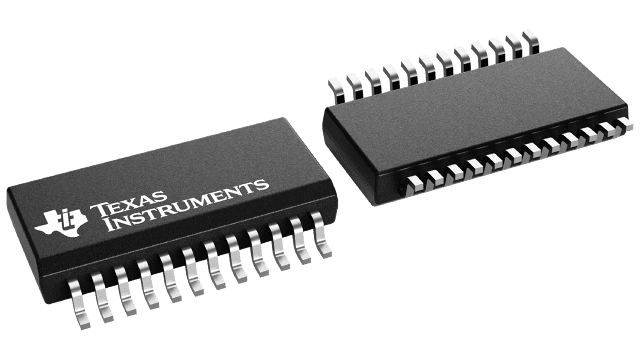

Product Images
