24-bit, 24-channel bus exchange switch, featuring a single DPDT throw configuration. Operates with a 4V to 5.5V supply voltage range, nominal 5V, and consumes 250mA. Offers a 200MHz bandwidth and a 0.25ns propagation delay. Designed for surface mount installation in a 56-pin TSSOP package, this lead-free, RoHS compliant component supports 128mA high and low level output current.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74CBTS16212DGGR technical specifications.
General
| Bandwidth | 200MHz |
| Package/Case | TSSOP |
| High Level Output Current | -128mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Low Level Output Current | 128mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Nominal Supply Current | 250mA |
| Number of Bits | 24 |
| Number of Channels | 24 |
| Operating Supply Voltage | 5V |
| Output Current | 64mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 0.25ns |
| RoHS Compliant | Yes |
| Series | 74CBTS |
| Supply Type | Single |
| Throw Configuration | DPDT |
| Weight | 0.008917oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74CBTS16212DGGR Datasheet
Download the complete datasheet for Texas Instruments SN74CBTS16212DGGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

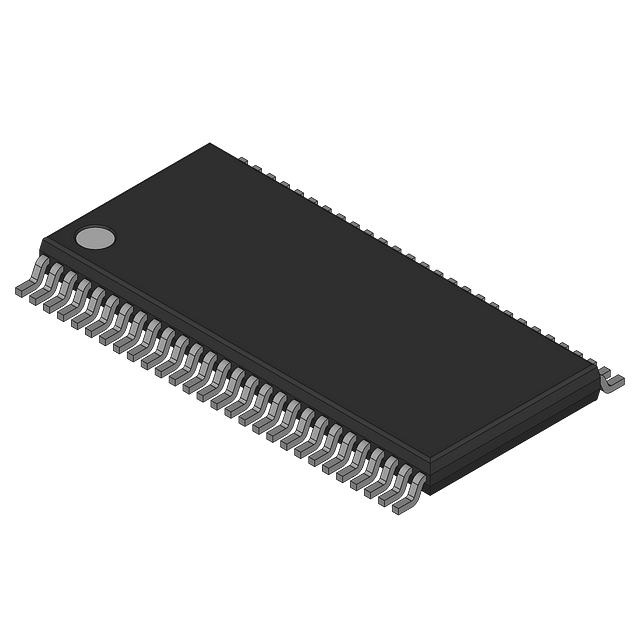

Product Images
