Quadruple bus buffer gate with 3-state outputs, featuring a 7.5ns propagation delay. This logic IC offers 4 independent buffer elements, each with one input and one output. Designed for surface mounting in a SO package, it operates with a supply voltage range of 4.5V to 5.5V. Key specifications include a high level output current of 64mA and a low level output current of 15mA, with an operating temperature range of 0°C to 70°C. This RoHS compliant component is packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments SN74F125NSR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

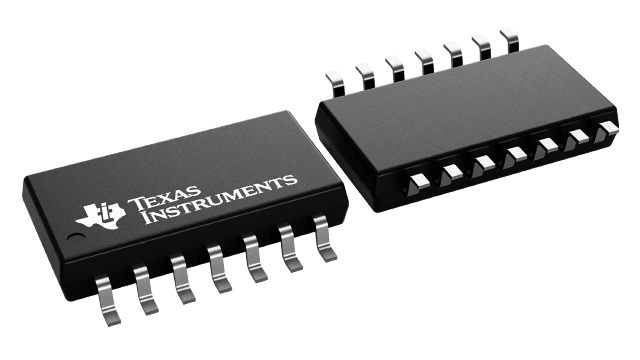

Texas Instruments SN74F125NSR technical specifications.
| Package/Case | SO |
| Height | 2mm |
| High Level Output Current | 64mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 15mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Output Lines | 3 |
| Number of Outputs | 4 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7.5ns |
| RoHS Compliant | Yes |
| Series | 74F |
| Thickness | 1.95mm |
| Width | 5.3mm |
| RoHS | Compliant |
