Texas Instruments
SN74GTL16616DGGR
17-Bit LVTTL-To-GTL/GTL+ Universal Bus Transceivers With Buffered Clock Outputs 56-TSSOP -40 to 85
Frequency95MHz
PackageTSSOP
Current120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74GTL16616DGGR technical specifications.
General
| Package/Case | TSSOP |
| Direction | Bidirectional |
| Frequency | 95MHz |
| High Level Output Current | 64mA |
| Lead Free | Contains Lead |
| Logic Function | Transceiver |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Bits | 17 |
| Output Current | 64mA |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 14.4ns |
| RoHS Compliant | Yes |
| Series | 74GTL |
| Supply Current | 120mA |
| Weight | 0.008917oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74GTL16616DGGR Datasheet
Download the complete datasheet for Texas Instruments SN74GTL16616DGGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

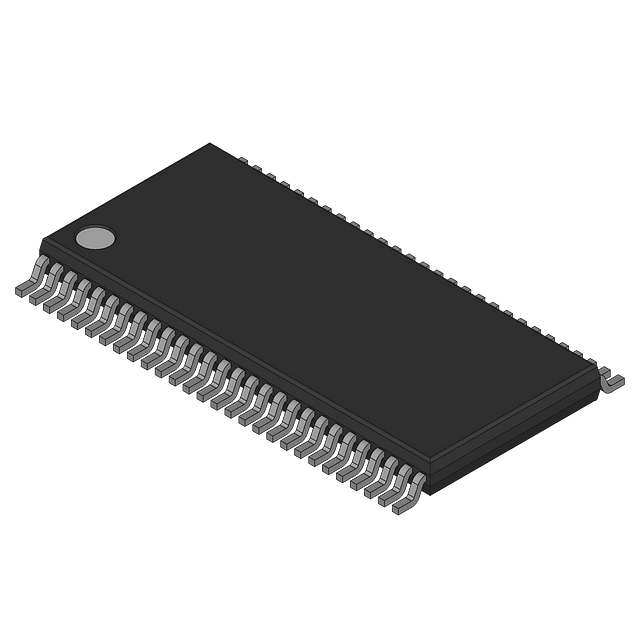

Product Images
