8-bit LVTTL-to-GTLP bus transceiver, featuring bidirectional data flow and 3-state outputs. Operates with a 3.3V supply voltage, supporting a frequency of 175MHz. This surface mount component offers a propagation delay of 7.5ns and a turn-on delay time of 8ns, with an output current capability of 50mA. Designed for a wide operating temperature range of -40°C to 85°C, it is RoHS compliant and lead-free.
Frequency175MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74GTLPH306PWR technical specifications.
General
| Package/Case | TSSOP |
| Direction | Bidirectional |
| Frequency | 175MHz |
| Lead Free | Lead Free |
| Logic Function | Translator, Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 50mA |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7.5ns |
| RoHS Compliant | Yes |
| Series | 74GTLPH |
| Technology | CMOS |
| Turn-On Delay Time | 8ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74GTLPH306PWR Datasheet
Download the complete datasheet for Texas Instruments SN74GTLPH306PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

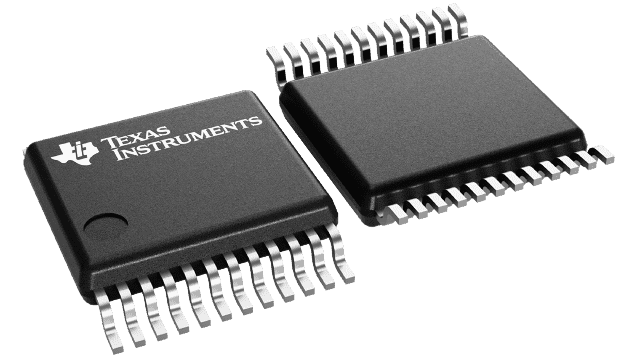

Product Images
