8 to 3 Priority Encoder IC, CMOS technology, featuring 8 input lines and 3 output lines. Operates with a supply voltage range of 2V to 6V, with a typical 5V operating voltage. Offers a bandwidth of 28MHz and a propagation delay of 16ns. Packaged in a 16-pin SOIC surface mount configuration, supplied on tape and reel. RoHS compliant with a maximum operating temperature of 85°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74HC148DR technical specifications.
General
Bandwidth
28MHz
Package/Case
SOIC
High Level Output Current
5.2mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Multiplexer
Low Level Output Current
5.2mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
1
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
3
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
16ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Type
Single
Technology
CMOS
Turn-On Delay Time
245ns
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HC148DR Datasheet
Download the complete datasheet for Texas Instruments SN74HC148DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

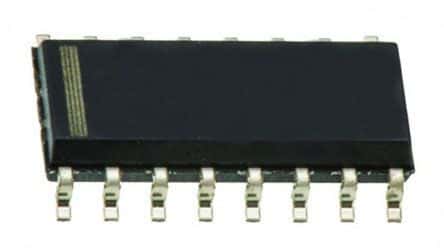

Product Images
