4-bit synchronous binary counter, CMOS technology, operating from 2V to 6V with a typical 5V supply. Features positive edge clock triggering, synchronous reset, and up-counting functionality. Achieves a maximum frequency of 44MHz with a propagation delay of 270ns. Packaged in a 16-PDIP for through-hole mounting, operating across a temperature range of -40°C to 85°C.
Frequency44MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74HC163N technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Positive Edge
Direction
Up, Unidirectional
Frequency
44MHz
Height
4.57mm
Lead Free
Lead Free
Length
19.3mm
Logic Function
Counter
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
4
Number of Bits per Element
4
Number of Circuits
4
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
270ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Synchronous
RoHS Compliant
Yes
Series
74HC
Sync/Async
Synchronous
Technology
CMOS
Turn-On Delay Time
270ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HC163N Datasheet
Download the complete datasheet for Texas Instruments SN74HC163N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

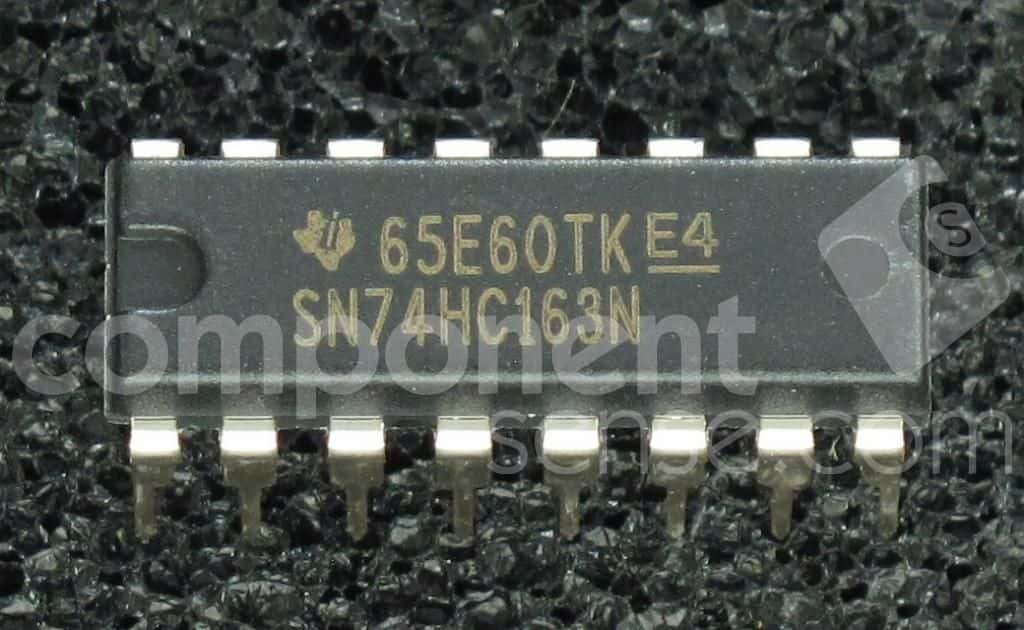

Product Images
