8-bit serial-to-parallel shift register, featuring CMOS technology and a unidirectional data flow. This logic IC offers 8 parallel outputs with push-pull configuration, driven by 2 serial inputs. Operating from a 2V to 6V supply voltage, it boasts a propagation delay of 255ns and a turn-on delay time of 175ns. Packaged in a 14-pin PDIP for through-hole mounting, it operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74HC164N technical specifications.
General
Package/Case
PDIP
Direction
Unidirectional
Height
4.57mm
Lead Free
Lead Free
Length
19.3mm
Logic Function
Shift Register
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
1
Number of Elements
1
Number of Input Lines
2
Number of Output Lines
8
Operating Supply Voltage
5V
Output Type
PUSH-PULL
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
255ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
175ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HC164N Datasheet
Download the complete datasheet for Texas Instruments SN74HC164N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

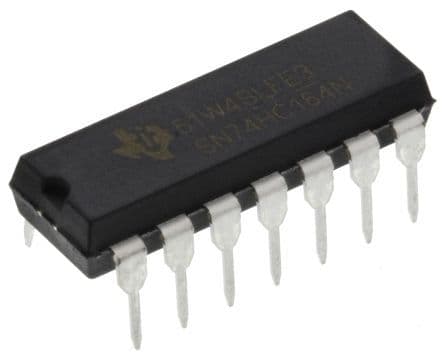

Product Images
