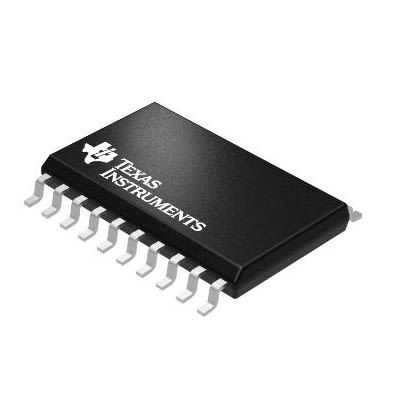

8-bit transparent D-type latch with 3-state outputs, featuring CMOS technology and a non-inverting logic function. Operates from a 2V to 6V supply voltage with a typical 5V operating voltage and 8µA quiescent current. Offers 7.8mA high and low level output current, with a propagation delay of 21ns. Packaged in a 20-pin SOIC for surface mounting, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC573ADW technical specifications.
General
Package/Case
SOIC
High Level Output Current
7.8mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
D-Type, Latch
Low Level Output Current
7.8mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
8
Number of Output Lines
8
Number of Outputs
8
Operating Supply Current
8uA
Operating Supply Voltage
5V
Output Current
7.8mA
Output Type
3-STATE
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
21ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
23ns
Weight
0.017662oz
Compliance
RoHS
Compliant
