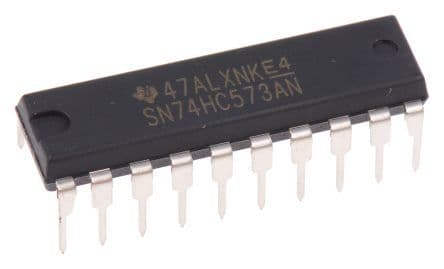

SN74HC573AN

Octal 3-State Latch IC, 8-Bit, CMOS, PDIP

Octal transparent D-type latches with 3-state outputs, featuring 8 independent channels. This CMOS logic IC operates with a supply voltage range of 2V to 6V, typically 5V, and supports a high-level output current of -7.8mA and low-level output current of 7.8mA. Designed for through-hole mounting in a 20-PDIP package, it offers non-inverting logic with a propagation delay of 285ns and a turn-on delay time of 23ns. The component is RoHS compliant and operates across a temperature range of -40°C to 85°C.

PackagePDIP

MountingThrough Hole

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Texas Instruments SN74HC573AN technical specifications.

General

Package/Case	PDIP
Height	4.57mm
High Level Output Current	-7.8mA
Independent Circuits	1
Lead Free	Lead Free
Length	24.33mm
Logic Function	D-Type, Latch
Low Level Output Current	7.8mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	6V
Min Supply Voltage	2V
Mount	Through Hole
Number of Bits	8
Number of Channels	8
Number of Circuits	8
Number of Elements	1
Number of Input Lines	3
Number of Output Lines	1
Number of Outputs	8
Operating Supply Voltage	5V
Output Current	7.8mA
Output Type	3-STATE
Package Quantity	20
Packaging	Rail/Tube
Polarity	Non-Inverting
Propagation Delay	285ns
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	74HC
Technology	CMOS
Thickness	4.57mm
Turn-On Delay Time	23ns
Weight	0.042297oz
Width	6.35mm
