CMOS Hex Inverter IC, featuring 6 independent 1-input inverter gates. Operates with a supply voltage range of 2V to 6V, with a typical 5V operating voltage. Offers a high level output current of -5.2mA and a low level output current of 5.2mA. Packaged in a 14-pin SSOP for surface mounting, with a propagation delay of 14ns. This RoHS compliant component is supplied on tape and reel.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74HCU04DBR technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -5.2mA |
| Lead Free | Contains Lead |
| Logic Function | Inverter |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 14ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74HCU |
| Technology | CMOS |
| Turn-On Delay Time | 100ns |
| Weight | 0.004296oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HCU04DBR Datasheet
Download the complete datasheet for Texas Instruments SN74HCU04DBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

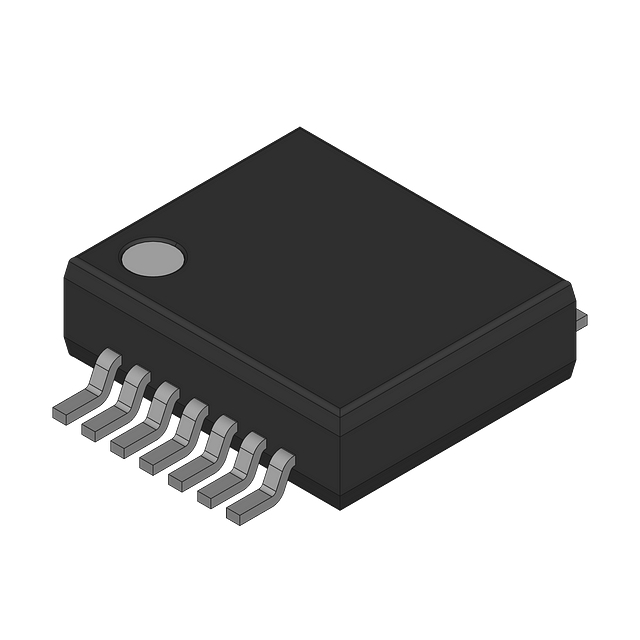

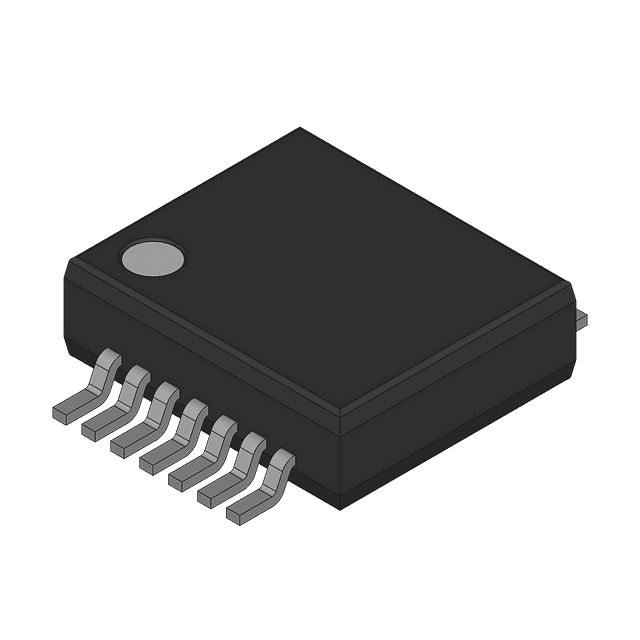

Product Images
