Six-channel bipolar inverter IC with open-collector outputs, operating from 4.75V to 5.25V. Features 8mA low-level output current and -100µA high-level output current. Packaged in a 14-pin PDIP with through-hole mounting, this RoHS compliant component offers a propagation delay of 32ns.
PackagePDIP
MountingThrough Hole
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS05N technical specifications.
General
Package/Case
PDIP
Height
4.57mm
High Level Output Current
-100uA
Lead Free
Lead Free
Length
19.3mm
Logic Function
Buffer, Inverter
Low Level Output Current
8mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
8mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Bits
6
Number of Channels
6
Number of Circuits
6
Number of Elements
6
Number of Gates
6
Number of Input Lines
6
Number of Inputs
1
Number of Output Lines
6
Number of Outputs
6
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
25
Packaging
Rail/Tube
Polarity
Inverting
Propagation Delay
32ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LS
Technology
BIPOLAR
Termination
Through Hole
Turn-On Delay Time
32ns
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LS05N Datasheet
Download the complete datasheet for Texas Instruments SN74LS05N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

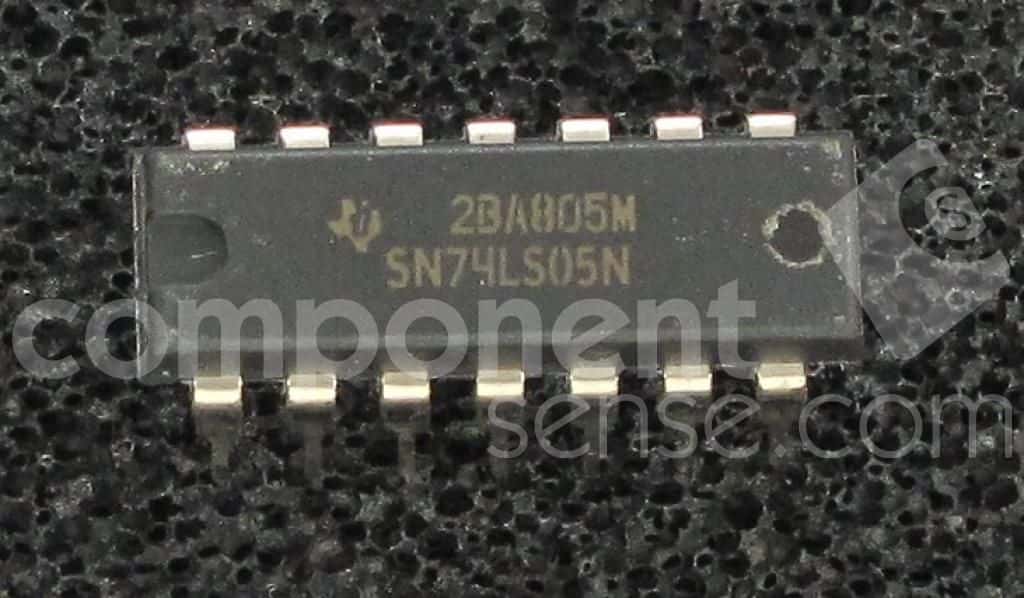

Product Images
