Quadruple 3-state buffer IC featuring four independent buffer elements, each with one input and one output. This non-inverting buffer operates with a supply voltage of 5V (4.75V to 5.25V) and offers a low-level output current of 24mA and a high-level output current of -2.6mA. The component boasts a propagation delay of 18ns and a turn-on delay time of 35ns. Packaged in a 14-pin PDIP with through-hole mounting, it operates within a temperature range of 0°C to 70°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS126AN technical specifications.
General
| Package/Case | PDIP |
| Height | 5.08mm |
| High Level Output Current | -2.6mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 18ns |
| Quiescent Current | 12mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LS |
| Technology | BIPOLAR |
| Termination | Through Hole |
| Thickness | 3.9mm |
| Turn-On Delay Time | 35ns |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LS126AN Datasheet
Download the complete datasheet for Texas Instruments SN74LS126AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

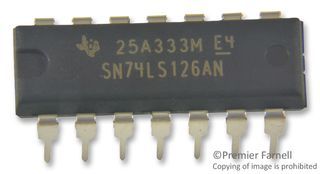

Product Images
