Quad D-type flip-flop with bus interface functionality, featuring positive edge clock triggering. This integrated circuit operates at a maximum frequency of 40MHz with a propagation delay of 25ns and turn-on delay of 13ns. It supports a 5V operating supply voltage, with a range of 4.75V to 5.25V, and provides TTL output with 8mA low-level output current and -400uA high-level output current. Packaged in a 16-pin PDIP for through-hole mounting, this RoHS compliant component is designed for 4-bit data storage.
Frequency40MHz
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS175N technical specifications.
General
Package/Case
DIP
Clock Edge Trigger Type
Positive Edge
Frequency
40MHz
Height
4.57mm
High Level Output Current
-400uA
Lead Free
Lead Free
Length
19.3mm
Logic Function
D-Type, Flip-Flop
Low Level Output Current
8mA
Max Frequency
40MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Bits
4
Number of Bits per Element
4
Number of Circuits
4
Number of Elements
1
Number of Input Lines
2
Number of Output Lines
2
Operating Supply Voltage
5V
Output Current
8mA
Output Type
TTL
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
25ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LS
Technology
BIPOLAR
Turn-On Delay Time
13ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LS175N Datasheet
Download the complete datasheet for Texas Instruments SN74LS175N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

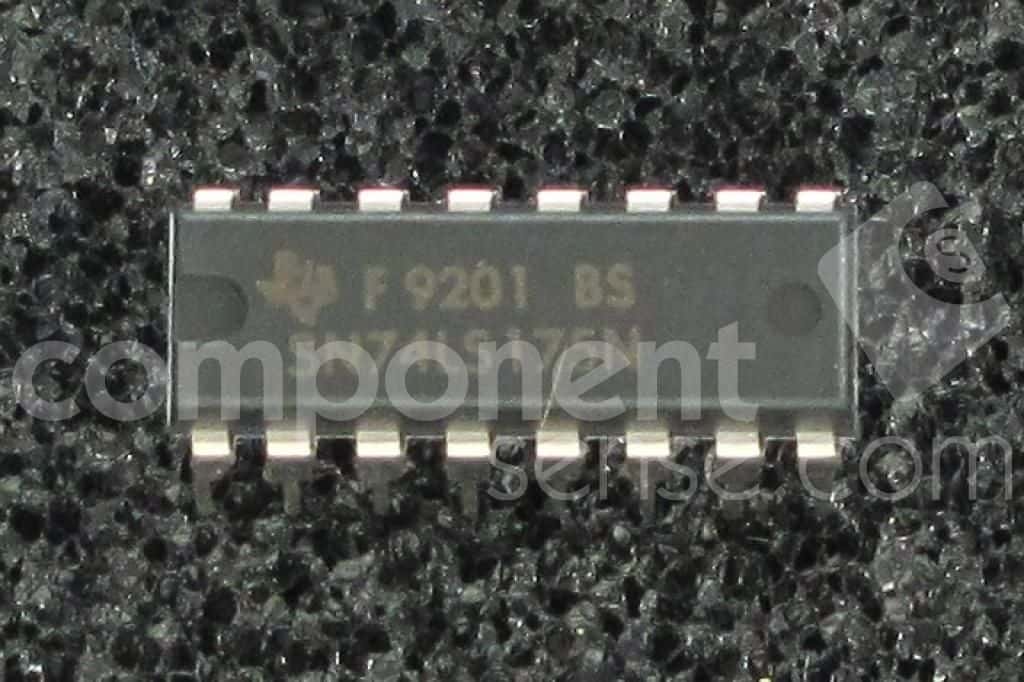

Product Images
