8-channel, 3-state, inverting buffer/line driver IC. Features bipolar technology, operating from a 4.75-V to 5.25-V supply. Offers 8 input lines and 8 output lines with a maximum output current of 24mA (low) and -15mA (high). Packaged in a 20-SOIC surface-mount format, this RoHS compliant component operates between 0°C and 70°C with an 18ns propagation delay.
PackageSOIC
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS240DWR technical specifications.
General
| Package/Case | SOIC |
| High Level Output Current | -15mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 8 |
| Number of Inputs | 4 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Propagation Delay | 18ns |
| Quiescent Current | 26mA |
| RoHS Compliant | Yes |
| Series | 74LS |
| Technology | BIPOLAR |
| Turn-On Delay Time | 18ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LS240DWR Datasheet
Download the complete datasheet for Texas Instruments SN74LS240DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

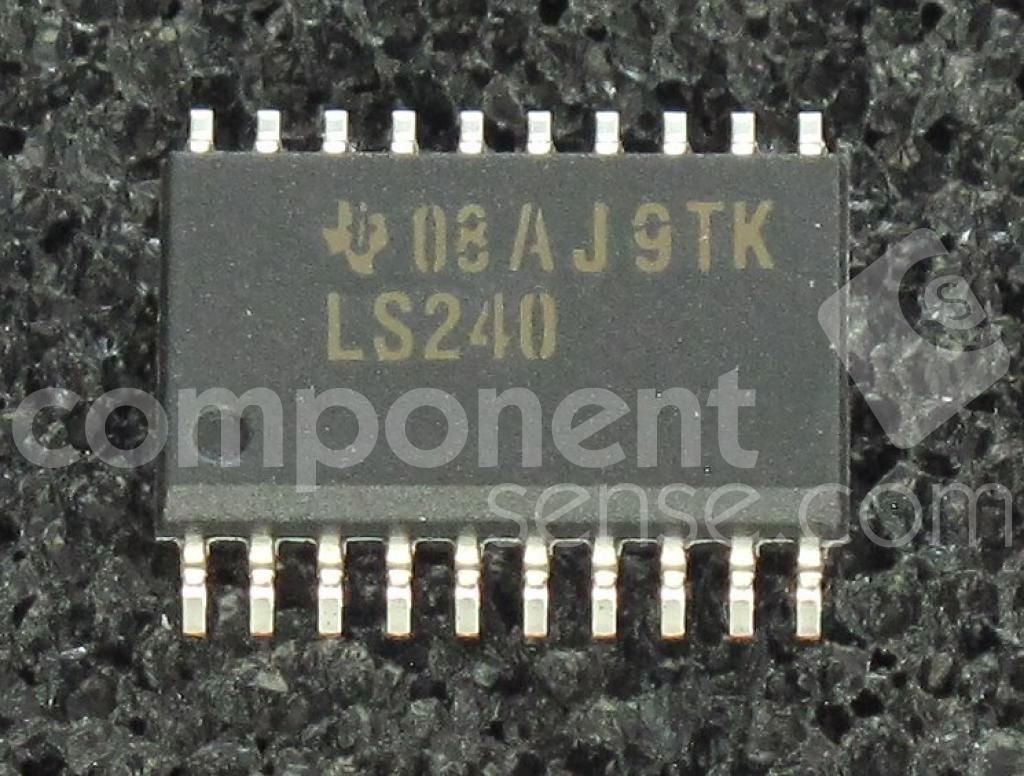

Product Images
