PackageSSOP
Current70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LV161284DLR technical specifications.
General
| Package/Case | SSOP |
| Dual Supply Voltage | 5V |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Dual Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 70mA |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Bits | 19 |
| Number of Receivers | 12 |
| Number of Transmitters | 13 |
| Output Current | 14mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LV |
| Supply Current | 70mA |
| Weight | 0.021175oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LV161284DLR Datasheet
Download the complete datasheet for Texas Instruments SN74LV161284DLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

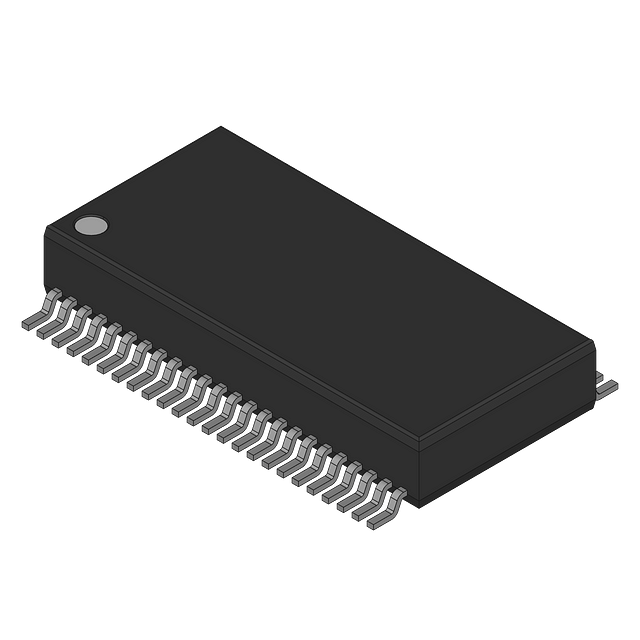

Product Images
