General-purpose analog multiplexer, 8:1 configuration, featuring a 35MHz bandwidth. This single-channel IC operates with a supply voltage range of 2V to 5.5V and a maximum operating temperature of 85°C. The component is surface mountable in a 16-VQFN package with dimensions of 4.15mm x 3.65mm x 0.95mm. It offers a typical operating supply current of 20uA and a propagation delay of 7ns. RoHS compliant and lead-free.
PackageVQFN
Current20uA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LV4051ARGYR technical specifications.
General
| -3db Bandwidth | 35MHz |
| Bandwidth | 35MHz |
| Package/Case | VQFN |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Operating Supply Current | 20uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 20uA |
| Termination | SMD/SMT |
| Weight | 0.001312oz |
| Width | 3.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LV4051ARGYR Datasheet
Download the complete datasheet for Texas Instruments SN74LV4051ARGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

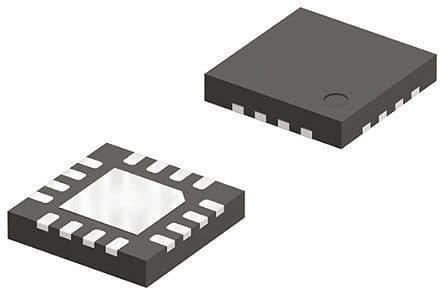

Product Images
