Surface mount NOR gate IC featuring 4 independent 2-input NOR gates. This CMOS logic device operates from a 1.65V to 3.6V supply, offering a propagation delay of 4.2ns. It supports output currents of 24mA (low level) and -24mA (high level), with a quiescent current of 1uA. The component is RoHS compliant, lead-free, and packaged in a 14-VQFN for tape and reel distribution.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC02ARGYRG4 technical specifications.
General
| Package/Case | VQFN |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | NOR GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 24mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.2ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Weight | 0.001136oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC02ARGYRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC02ARGYRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

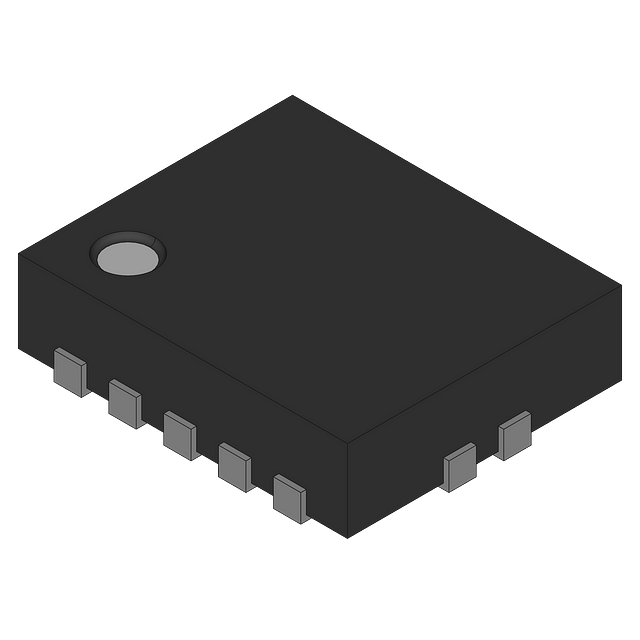

Product Images
