6-channel buffer IC with open-drain outputs, operating from 1.65V to 5.5V. Features 6 non-inverting buffer elements, each with one input and one output. Supports a high level output current of -24mA and a low level output current of 24mA. CMOS technology ensures a propagation delay of 2.6ns and a turn-on delay time of 5.6ns. Packaged in a 14-SSOP for surface mounting, with an operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC07ADBR technical specifications.
General
Package/Case
SSOP
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
10
Number of Bits per Element
1
Number of Channels
6
Number of Elements
6
Number of Input Lines
6
Number of Inputs
6
Number of Output Lines
6
Number of Outputs
6
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
2.6ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
5.6ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC07ADBR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC07ADBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

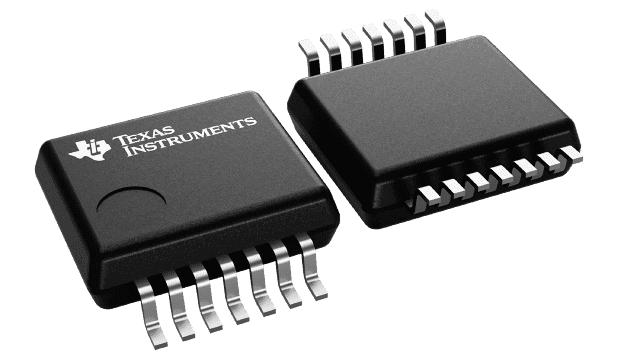

Product Images
