Hex buffer/driver with open-drain outputs, featuring 6 channels and 6 elements. This CMOS logic IC operates from a 1.65V to 5.5V supply range, with a maximum operating temperature of 125°C and a minimum of -40°C. It supports a low-level output current of 24mA and a high-level output current of -24mA, with a propagation delay of 2.6ns. Packaged in a 14-TSSOP for surface mounting, this lead-free and RoHS compliant component offers non-inverting logic.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC07APW technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
10
Number of Bits per Element
1
Number of Channels
6
Number of Elements
6
Number of Input Lines
6
Number of Inputs
6
Number of Output Lines
6
Number of Outputs
6
Package Quantity
90
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
2.6ns
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
5.6ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC07APW Datasheet
Download the complete datasheet for Texas Instruments SN74LVC07APW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

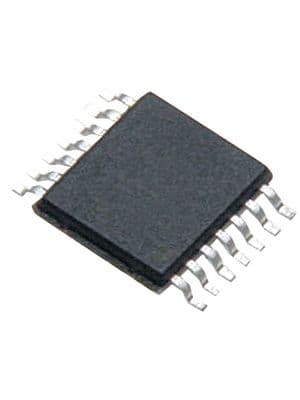

Product Images
