Four-channel, 3-state buffer with non-inverting logic function. Operates from a 1.65V to 3.6V supply voltage with a maximum quiescent current of 1µA. Features a 4.5ns propagation delay and 3-state outputs capable of sourcing/sinking 24mA. Packaged in a 14-VQFN surface-mount format, this CMOS buffer is RoHS compliant and operates across a temperature range of -40°C to 125°C.
PackageVQFN
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC126ARGYR technical specifications.
General
| Package/Case | VQFN |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 3 |
| Number of Outputs | 4 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4.5ns |
| Quiescent Current | 1uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 12.6ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC126ARGYR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC126ARGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

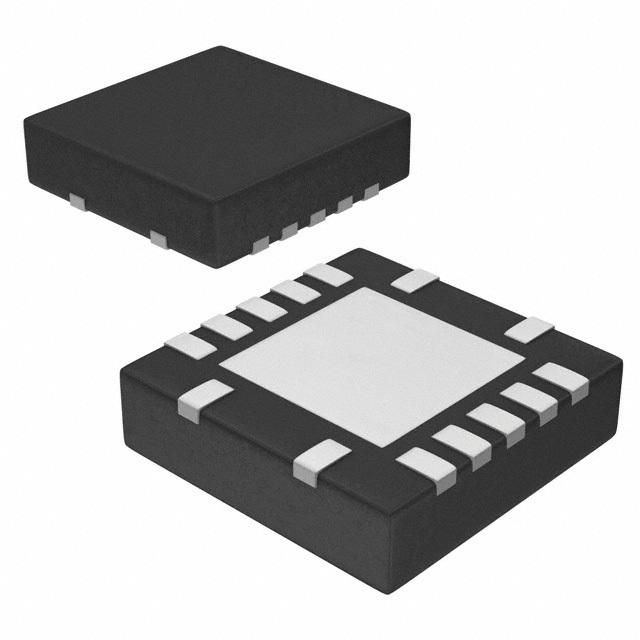

Product Images
