Dual 2-to-4 demultiplexer/decoder IC with inverting outputs. Features 1.65V to 3.6V supply voltage range, 24mA high/low output current, and 6.2ns propagation delay. CMOS technology supports a 100MHz bandwidth and operates from -40°C to 85°C. Surface mount VFBGA package with 2 independent circuits.
PackageVFBGA
MountingSurface Mount
PolarityInverting
Power200mW
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC139AGQNR technical specifications.
General
| Bandwidth | 100MHz |
| Package/Case | VFBGA |
| High Level Output Current | -24mA |
| Independent Circuits | 2 |
| Logic Function | Demultiplexer, Decoder, Demux |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Power Dissipation | 200mW |
| Propagation Delay | 6.2ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | 74LVC |
| Supply Type | Single |
| Technology | CMOS |
| Throw Configuration | DP4T |
| Turn-On Delay Time | 20.6ns |
| Weight | 0.000765oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments SN74LVC139AGQNR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC139AGQNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

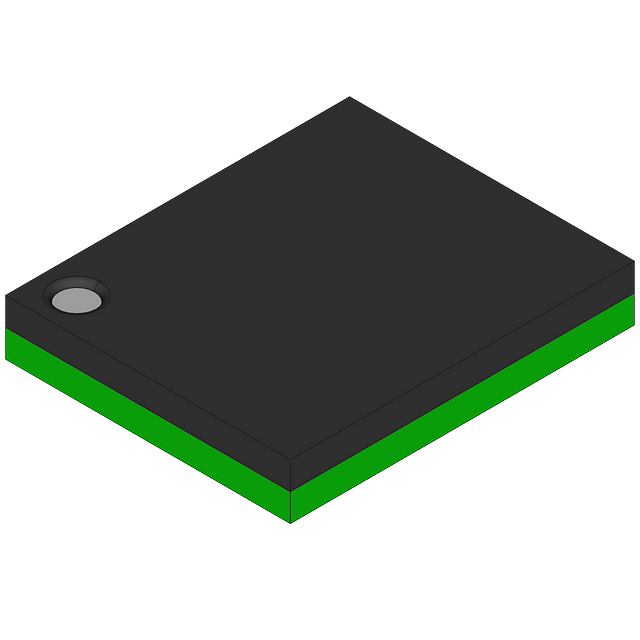

Product Images
