Single CMOS inverter with a 1.65V to 5.5V supply voltage range. Features a 7.5ns propagation delay and 32mA output current. This surface mount device operates from -40°C to 125°C and is packaged on tape and reel. RoHS compliant with a 10uA quiescent current.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G04DCKR technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 2.15mm |
| Logic Function | Inverter |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 32mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Inputs | 1 |
| Output Current | 32mA |
| Packaging | Tape and Reel |
| Propagation Delay | 7.5ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 74LVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 3.7ns |
| Weight | 8.8E-05oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G04DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G04DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

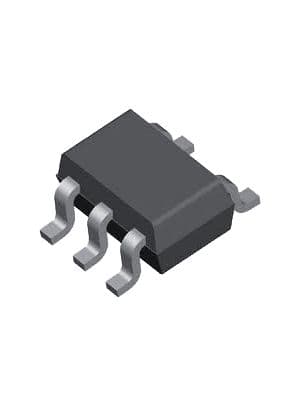

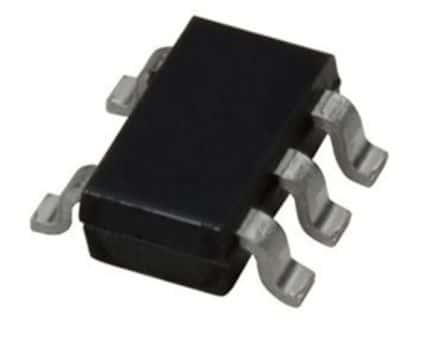

Product Images
