Single-channel CMOS buffer IC featuring open-drain outputs. Operates with a supply voltage range of 1.65V to 5.5V, offering a low quiescent current of 10µA. This surface-mount component, housed in a compact SOT-553 package (1.7mm L x 1.3mm W x 0.55mm H), supports a wide operating temperature range from -40°C to 125°C. Delivers a low-level output current of 32mA with propagation delays around 8.3ns. RoHS compliant and lead-free.
PackageSOT-553
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G07DRLR technical specifications.
General
| Package/Case | SOT-553 |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 8.3ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 8.6ns |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G07DRLR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G07DRLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

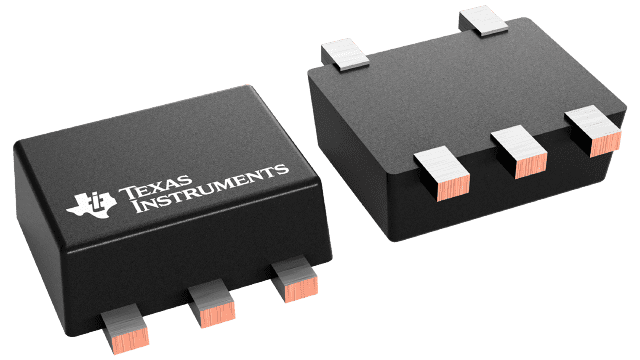

Product Images
