Single-element monostable multivibrator, CMOS technology, operating from 1.65V to 5.5V with a typical 5V supply. Features Schmitt trigger inputs, a propagation delay of 59ns, and a turn-on delay time of 18.6ns. Supports high and low level output currents of 32mA, with a quiescent current of 20uA. Packaged in an 8-pin VSSOP for surface mounting, this RoHS compliant component operates across a temperature range of -40°C to 125°C.
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G123DCUT technical specifications.
General
Package/Case
VSSOP
High Level Output Current
-32mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Multivibrator
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Elements
1
Operating Supply Voltage
5V
Output Current
32mA
Package Quantity
250
Packaging
Tape and Reel
Propagation Delay
59ns
Quiescent Current
20uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
18.6ns
Weight
0.000339oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G123DCUT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G123DCUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

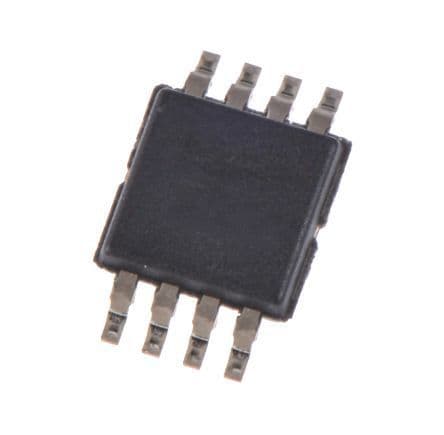

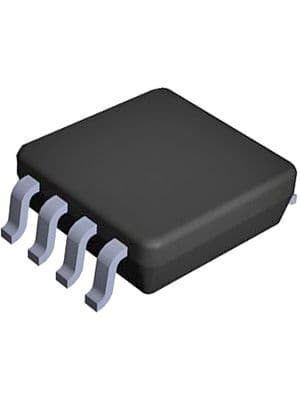

Product Images
