Single-channel CMOS buffer with Schmitt-trigger inputs, operating from 1.65V to 5.5V. Features push-pull output, 5ns propagation delay, and 11ns turn-on delay. Designed for surface mounting in a 5-SC70 package, this non-inverting logic IC offers a high level output current of -32mA and a low level output current of 32mA. Suitable for operation between -40°C and 125°C, with a nominal supply current of 500nA.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G17DCKR technical specifications.
General
Package/Case
SC
Height
1.1mm
High Level Output Current
-32mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Length
2mm
Logic Function
Buffer, Inverting, Schmitt Trigger
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
500nA
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Output Type
PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5ns
Quiescent Current
1.5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
900um
Turn-On Delay Time
11ns
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G17DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G17DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

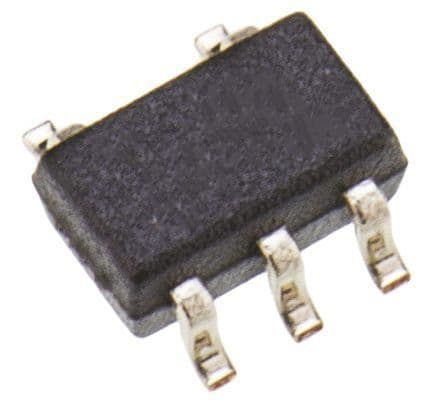

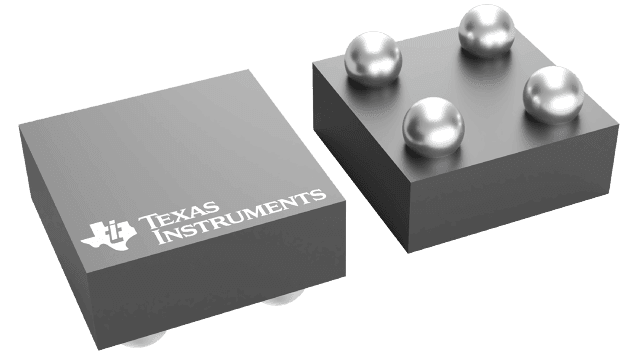

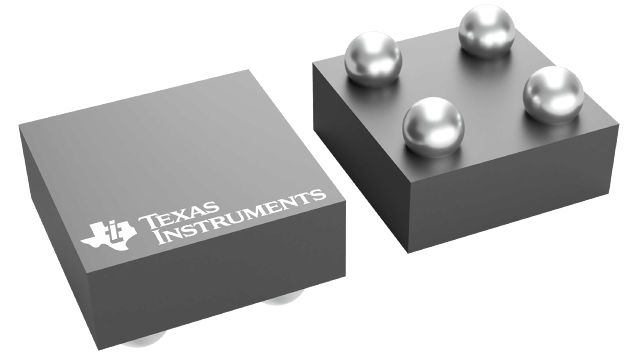

Product Images
