Single Schmitt-Trigger Buffer, CMOS technology, operating from 1.65V to 5.5V supply. Features a Schmitt-trigger input and push-pull output, supporting 32mA high and low level output current. This buffer offers a 11ns propagation delay and operates across a -40°C to 125°C temperature range. Packaged in a compact 1.05mm x 1.05mm x 0.35mm SON surface-mount package, it is lead-free and RoHS compliant.
PackageSON
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G17DSFR technical specifications.
General
Package/Case
SON
Height
0.35mm
High Level Output Current
-32mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Length
1.05mm
Logic Function
Schmitt Trigger, Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
11ns
Quiescent Current
500nA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74LVC
Technology
CMOS
Thickness
350um
Turn-On Delay Time
11ns
Width
1.05mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G17DSFR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G17DSFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

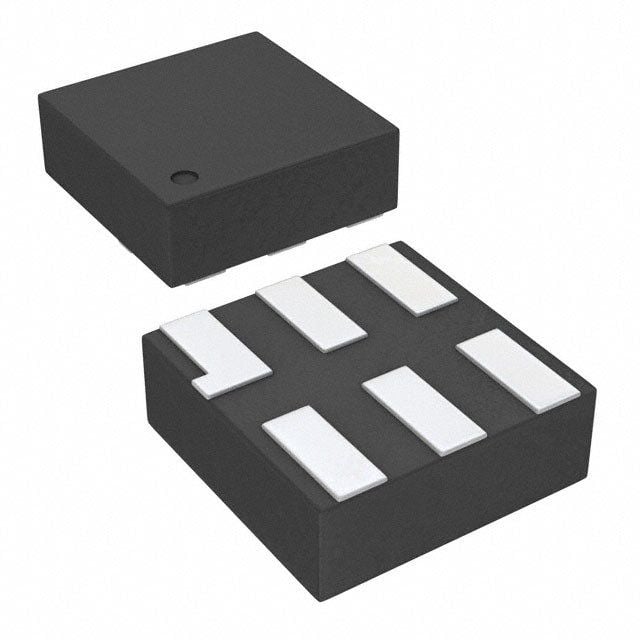

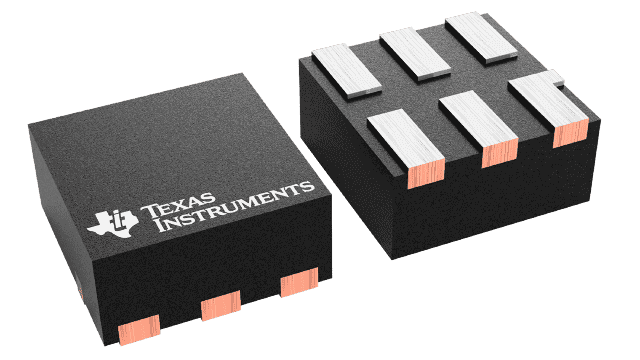

Product Images
