Single Schmitt-Trigger Buffer, CMOS technology, operating from 1.65V to 5.5V with a typical 3.3V supply. Features a non-inverting logic function, 1-bit buffer with a single Schmitt-trigger input and output. Offers a propagation delay of 5ns, high level output current of -32mA, and low level output current of 32mA. Packaged in a compact 0.9mm x 1.4mm x 0.3mm BGA, surface mountable, with an operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G17YZPR technical specifications.
General
| Package/Case | BGA |
| Height | 0.3mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 1.4mm |
| Logic Function | Schmitt Trigger, Buffer |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 5ns |
| Quiescent Current | 500nA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 5ns |
| Width | 0.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G17YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G17YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

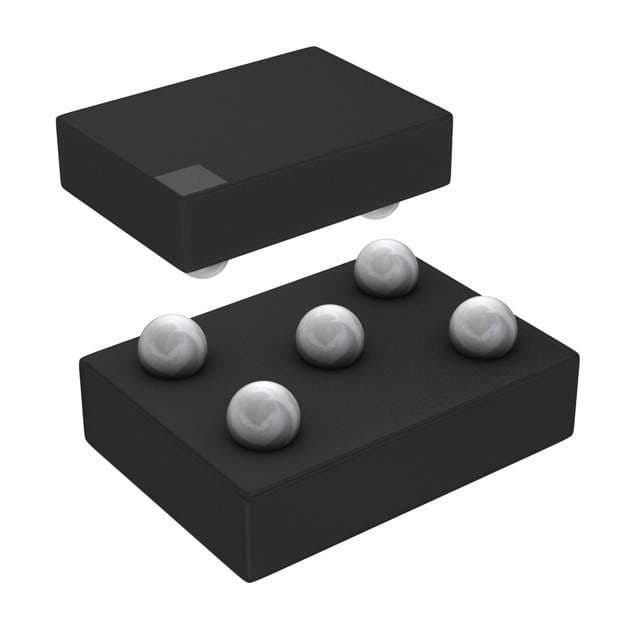

Product Images
