Single 2-input positive-OR gate, CMOS technology, operating supply voltage from 1.65V to 5.5V. Features a maximum output current of 32mA, with propagation delay of 4ns and turn-on delay time of 4.5ns. This surface mount component is packaged in SC, suitable for temperatures from -40°C to 125°C, and is RoHS compliant.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G32DCKT technical specifications.
General
Package/Case
SC
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
OR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
32mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
3.3V
Output Current
32mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
4ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
4.5ns
Weight
8.8E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G32DCKT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G32DCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

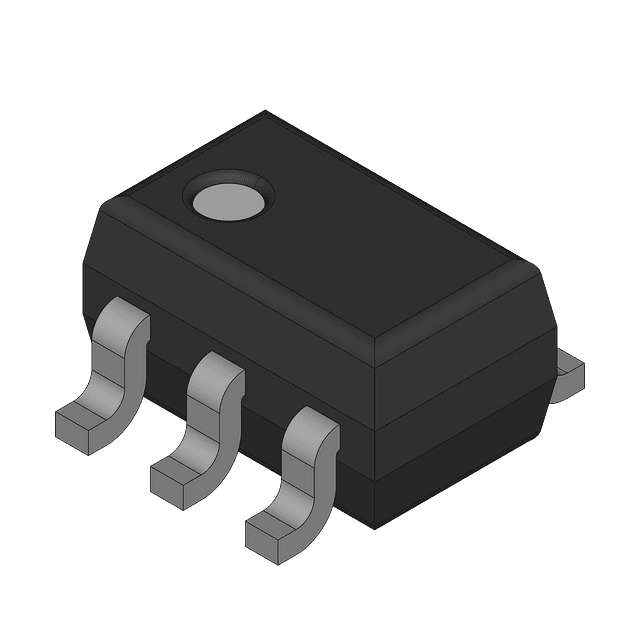

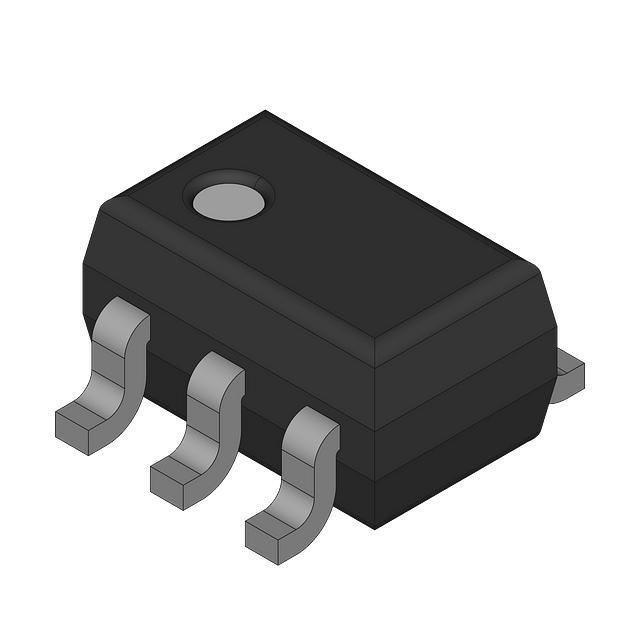

Product Images
