Single 2-input positive-OR gate, CMOS technology, operating from 1.65V to 5.5V. Features a 4ns propagation delay and 4.5ns turn-on delay. Offers 32mA high and low level output current. Packaged in a 1.05mm x 1.05mm x 0.35mm SON for surface mounting. RoHS compliant with a -40°C to 125°C operating temperature range.
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G32DSFR technical specifications.
General
Package/Case
SON
Height
0.35mm
High Level Output Current
32mA
Input Type
DIFFERENTIAL
Lead Free
Lead Free
Length
1.05mm
Logic Function
OR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Outputs
1
Output Current
32mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
4ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LVC
Technology
CMOS
Turn-On Delay Time
4.5ns
Width
1.05mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G32DSFR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G32DSFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

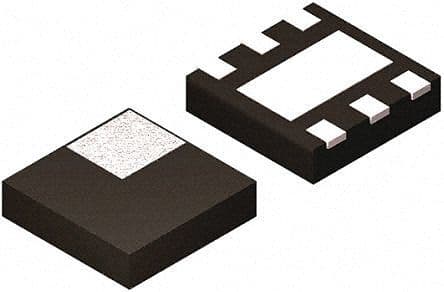

Product Images
