Single 3-input positive-OR gate, CMOS technology, operating from 1.65V to 5.5V. Features a 4.5ns propagation delay and 4.8ns turn-on delay. Supports 32mA high and low level output current. Packaged in a 6-SC70 surface mount configuration, operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSC
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments SN74LVC1G332DCKR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments SN74LVC1G332DCKR technical specifications.
General
| Package/Case | SC |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | OR GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 32mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 32mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.5ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 4.8ns |
| Weight | 8.8E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G332DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G332DCKR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

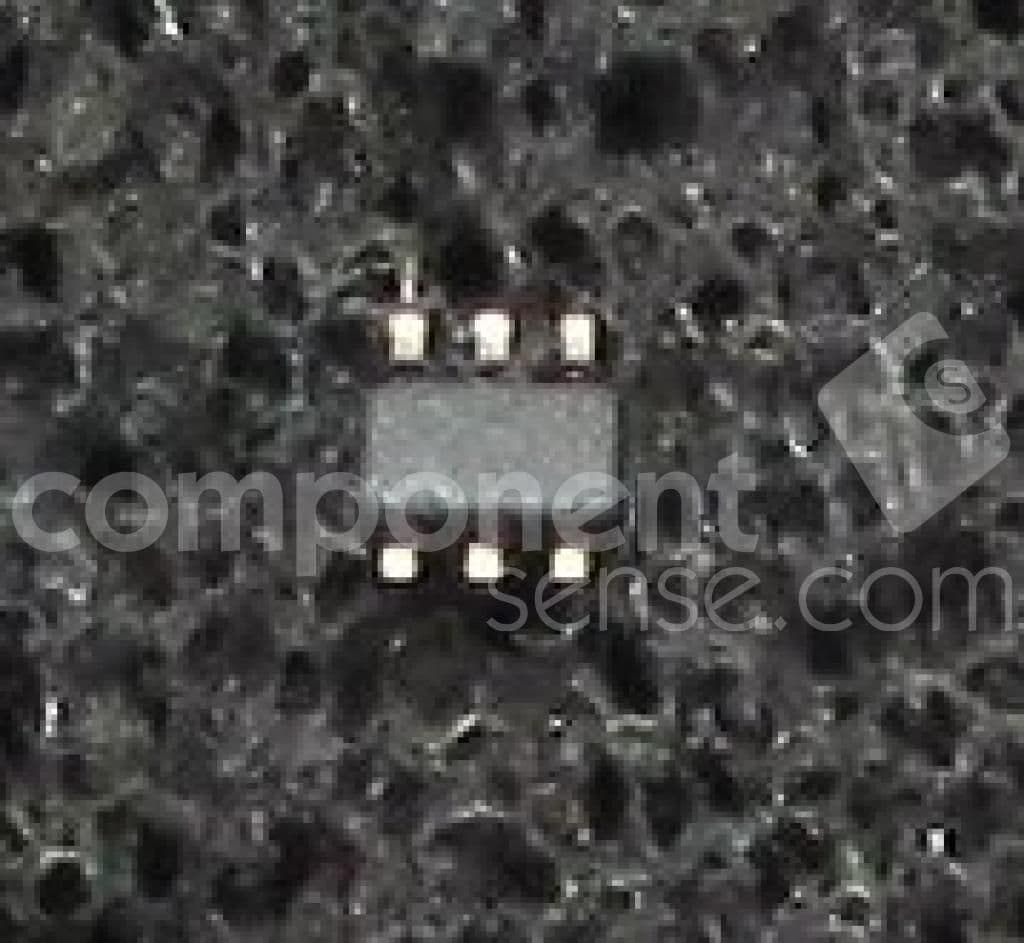

Product Images
