Single buffer gate, CMOS technology, operating from 1.65V to 5.5V supply. Features a 3.2ns propagation delay and 10µA nominal supply current. Supports 32mA high and low level output current with a push-pull output type. Packaged in a 1.45mm height SOT-23 surface mount case, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageSOT-23
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34DBVR technical specifications.
General
Package/Case
SOT-23
Height
1.45mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2.9mm
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
10uA
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Output Type
PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.2ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Thickness
1.2mm
Turn-On Delay Time
9.9ns
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G34DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

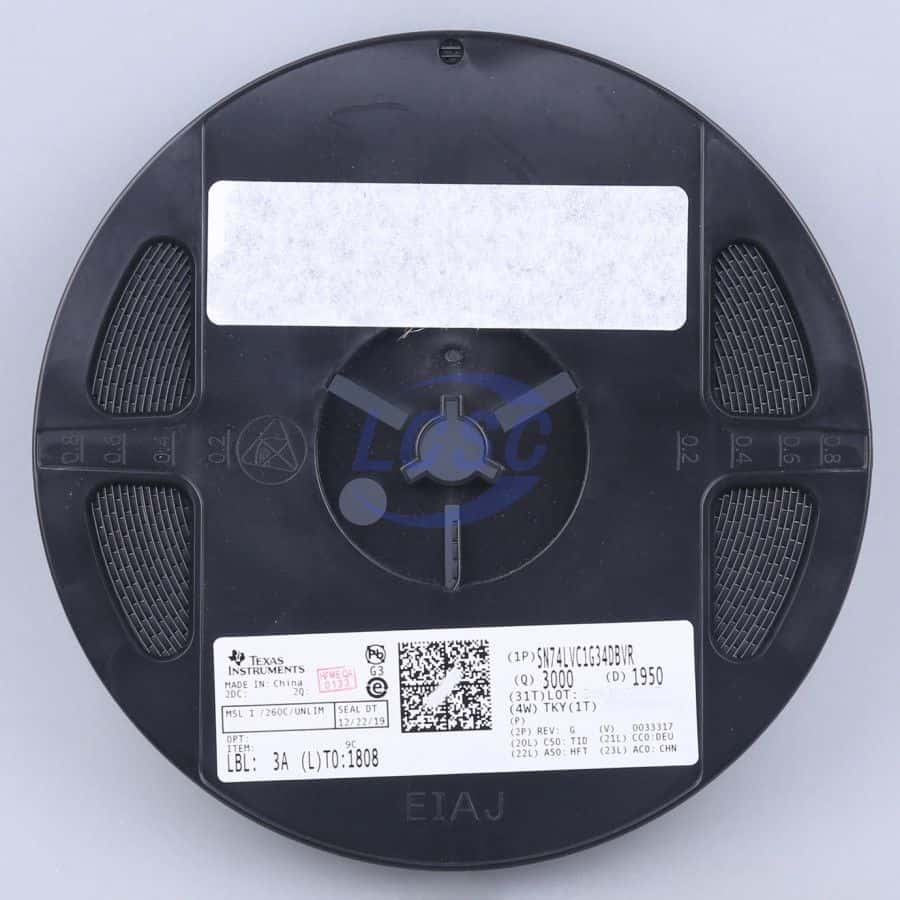

Product Images
