Single-bit, non-inverting buffer/line driver IC featuring CMOS technology. Operates with a supply voltage range of 1.65V to 5.5V, offering a maximum output current of 32mA (low level) and -32mA (high level). This surface-mount component, housed in an SC package, boasts a propagation delay of 4.1ns and a quiescent current of 1uA. Designed for a wide operating temperature range from -40°C to 125°C, it is lead-free and RoHS compliant.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34DCKTG4 technical specifications.
General
Package/Case
SC
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Package Quantity
250
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.1ns
Quiescent Current
1uA
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
9.9ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G34DCKTG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34DCKTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

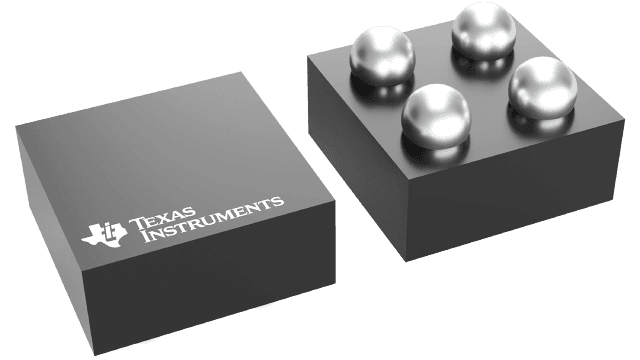

Product Images
