Single D-Type Latch, 1-bit, CMOS technology, featuring 3-state output. Operates with supply voltages from 1.65V to 5.5V, offering a low-level output current of 32mA and a high-level output current of -32mA. This surface mount component boasts a propagation delay of 17.4ns and a turn-on delay time of 1ns, with an operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G373YZPR technical specifications.
General
High Level Output Current
-32mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
D-Type, Latch
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Output Lines
1
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
17.4ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
1ns
Weight
6E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G373YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G373YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

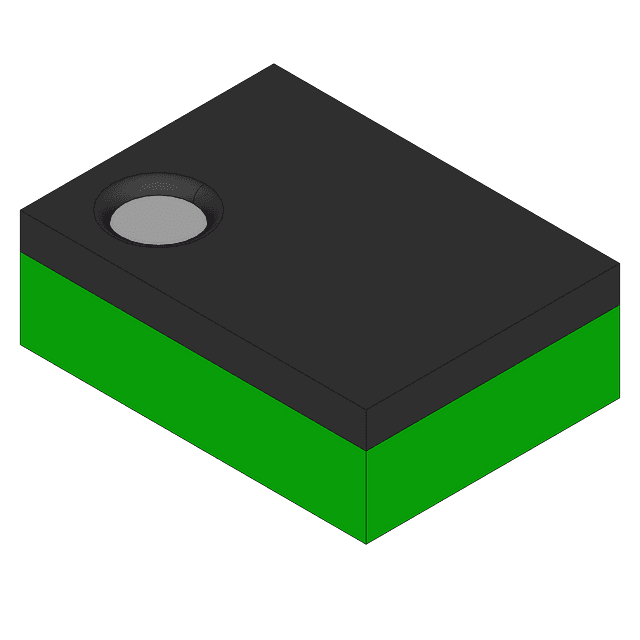

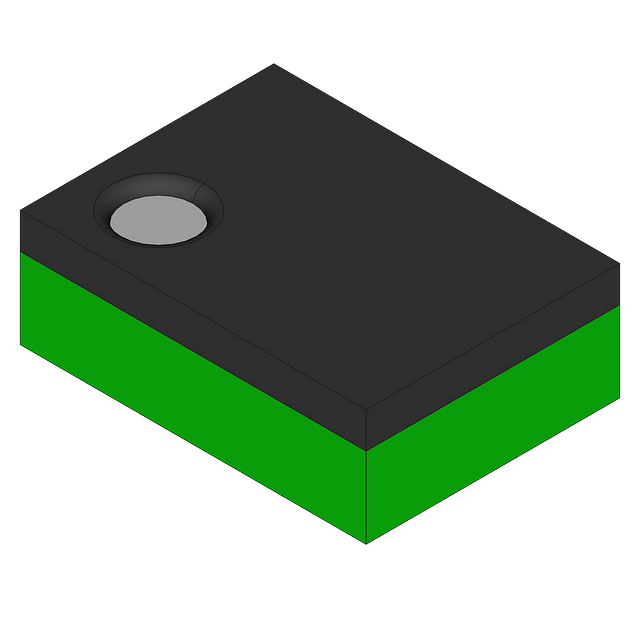

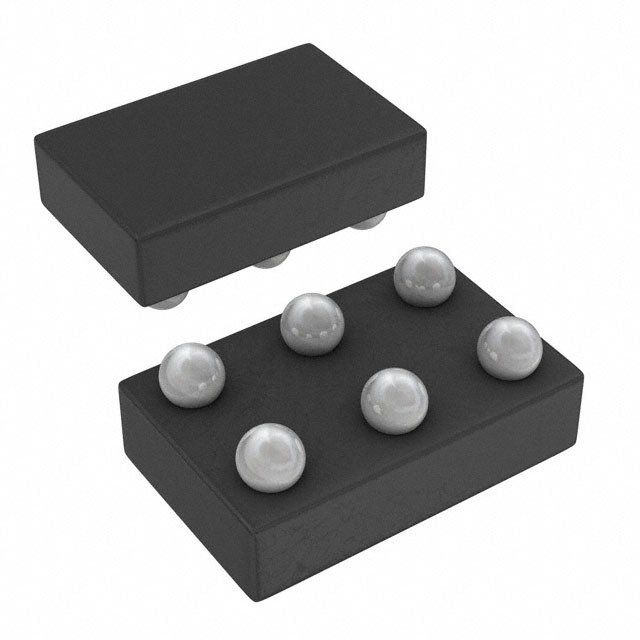

Product Images
