Positive edge-triggered D-type flip-flop with an inverting output. This single-bit logic IC operates with a maximum frequency of 160MHz and features a propagation delay of 5.2ns. It supports a supply voltage range from 1.65V to 5.5V and offers ±32mA high and low level output current. Designed for surface mount applications, this RoHS compliant component is packaged in a DSBGA-5 package.
Frequency160MHz
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G80YZAR technical specifications.
General
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 160MHz |
| High Level Output Current | 32mA |
| Input Type | SINGLE-ENDED |
| Lead Free | Contains Lead |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Propagation Delay | 5.2ns |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Turn-On Delay Time | 1.1ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G80YZAR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G80YZAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

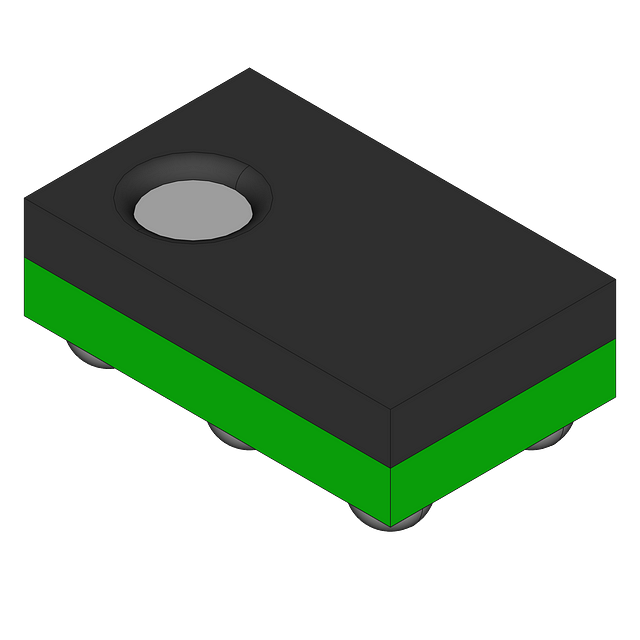

Product Images
